Low TOC Alpha® Polyester Knit TX714K Large Cleaning Validation Cleanroom Swab, Non-Sterile
Low TOC Alpha® Polyester Knit TX714K Large Cleaning Validation Cleanroom Swab, Non-Sterile

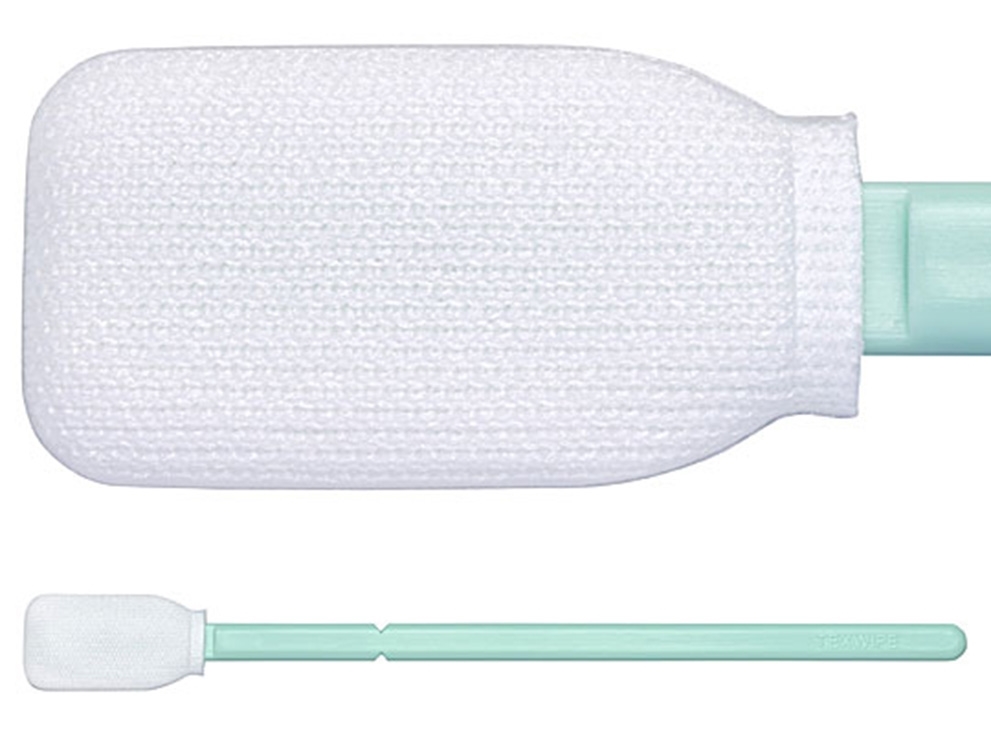

Picture of Low  TOC Alpha® Polyester Knit TX714K Large Cleaning Validation Cleanroom Swab, Non-Sterile

Low TOC Alpha® Polyester Knit TX714K Large Cleaning Validation Cleanroom Swab, Non-Sterile

Texwipe’s cleaning validation cleanroom swabs are used to determine the effectiveness of cleaning protocols as specified by the US FDA. HPLC/ UV-Vis Total Organic Carbon (TOC) analysis are different methods used to validate these cleaning processes.

Texwipe offers the following cleaning validation swabs:

  • Alpha®Polyester Knit Series - TX714K, TX761K - suitable for use in TOC analysis
  • Alpha®Polyester Knit Series - TX715 - suitable for HPLC analysis using a UV detector analytical method
  • Absorbond® Polyester Non-Woven Large Swab - TX716 - suitable for HPLC analysis

NSF Certified to be acceptable for use as a Cleaning Swab (P1) in and around food processing areas. The product must only be used in such a manner as to ensure it will not have direct contact with food or potable water. Use must also be consistent with the manufacturer’s directions.

Benefits

  • All Cleaning Validation swabs are precision-manufactured and constructed to exacting and consistent tolerances without the use of adhesives for superior performance
  • Notched, rigid 100% polypropylene, break-away handle allows the head to be placed into the vial with minimal handling and contamination and provides excellent chemical resistance
  • Lot coded for traceability and quality control
  • TX714K, TX761K: Certified Low TOC level (<50 μg/L, <50 ppb) ensures consistency in swab background contribution
  • Double layered, double knit polyester head entraps contaminants in the knit structure during sampling, allowing maximum contaminant collection and release into the diluent to provide for excellent recovery rates
  • TX715: This swab is additionally processed to reduce the UV background. Proprietary cleaning process reduces interference in the 230 nm range, resulting in an improved limit of detection

Click here for TOC Kits - cleaning validation swabs and vials in pre-assembled kits packaging.

Part No.Head WidthHead ThicknessHead LengthHandle WidthHandle ThicknessHandle LengthTotal Swab Length
TX714K 12.7mm (0.500") 4.2mm (0.165") 25.7mm (1.012") 5.2mm (0.205") 3mm (0.118") 101.8mm (4.008") 127.5mm (5.020")

Part Number: TX714K


Product Specs

Inner Bags: 20 swabs/bag Outer Bags: 50 bags/case Packaging: 1,000 swabs total/case

Applications

  • Surface sampling for use as part of a cleaning validation protocol
  • Pharmaceutical manufacturing cleaning validation with HPLC/UV-Vis or TOC protocol
  • Appropriate for applications needing very low levels of contaminants
